Daikin Air Handlers and Coils
Installing the correct air handler or evaporator coil is essential for getting the highest level of comfort from your central air conditioning or heat pump system. Air handlers can ramp the motor up and down, regulating the output and ultimately delivering variable airflow and a steady temperature and humidity throughout your home, and can also equip you with exceptional control.
The evaporator coil typically lives on top of a furnace and provides a tremendously important function: as warm air passes over the cold coils, it cools the air, but also removes humidity.
Having a high-efficiency air handler and evaporator coil is a prime way to get the highest level of comfort from your central air conditioning or heat pump system. Make sure that your system is performing to its optimum level with our air handlers and evaporator coils.
DVPEC Air Handler
The Daikin brand DVPEC Multi-Position, Variable-Speed, Inverter-Tuned Air Handler is part of our ComfortNet™ family of communicating units and is designed specifically for use with 18 SEER inverter outdoor equipment. This unit’s ECM indoor blower motor allows for a soft start and stop, offering a quiet, efficient operation while helping to reduce the cold blast of air upon heating start-up.
Features
- Factory-Installed Electronic Expansion Valve
- Variable-Speed Electrically Commutated Motor (ECM)
- ComfortNet Compatible
- Electronic Expansion Valve (EEV) for cooling and heat pump applications
- Variable-speed ECM indoor blower motor
- ComfortNet™ Communicating System compatible
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable low CFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control compared to units without ECM or EEV
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21 inch depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Tool-less filter access
- AHRI certified and ETL listed
DVPVC Air Handler
The Daikin brand DVPVC Multi-Position, Variable-Speed, Inverter-Tuned Air Handler is part of our ComfortNet™ family of communicating units and is designed specifically for use with 20 SEER inverter outdoor equipment. This unit's ECM indoor blower motor allows for a soft start and stop, offering a quiet, efficient operation while helping to reduce the cold blast of air upon heating start-up.
Features
- Factory-Installed Thermostatic Expansion Valve
- Variable-Speed Electrically Commutated Motor (ECM)
- ComfortNet Compatible
- Compatible with the ComfortNet™ Communicating System family of products
- Maximum four low-voltage wires required for operation in communicating mode
- Auto configuration of the airflow and tonnage in communicating mode
- Factory-installed
- inverter-tuned thermal expansion valves
- Variable-speed ECM indoor blower motor
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- Provides adjustable low speed for efficient fan-only operation
- CFM and diagnostic indicator with front-panel sight glass
- Galvanized
- leather grain-embossed finish
- Foil-faced insulation covers the entire blower case to reduce operating sound and cabinet condensation
- Multi-position installation: upflow
- downflow or horizontal
- AHRI certified; ETL listed

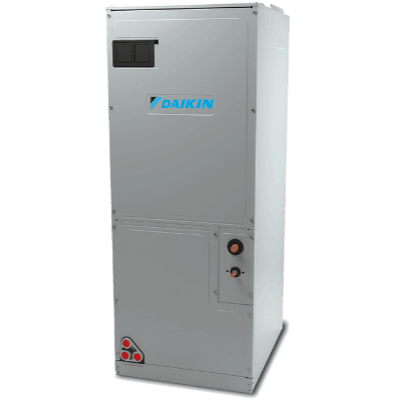

DVPTC Air Handler
The Daikin brand DVPTC Multi -Position, Variable - Speed Air Handler is part of our ComfortNet™ family of communicating units and optimized for use with the chlorine-free refrigerant, R-410A. This unit’s ECM indoor blower motor allows for a soft start and stop, which offers a quiet, efficient operation and helps reduce the cold blast of air upon heating start-up.
Features
- ComfortNet™ Communicating System compatible
- Variable-speed ECM indoor blower motor
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- All-aluminum evaporator coil
- Factory-installed thermal expansion valves
- Built-in compatibility with multi-stage heat pump and cooling applications
- Provides adjustable low speed for efficient fan-only operation
- Improved humidity and comfort control
- Rigid 21 deep cabinet for easy attic access
- Multi-position installation: upflow / downflow or horizontal
- Built-in coil has horizontal and vertical and downflow drain pans with secondary drain connections
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- AHRI certified and ETL listed
ASPT Air Handler
The Daikin brand ASPT Multi-Position, Multi-Speed Air Handler features a 21" deep cabinet for easy attic access and includes a direct-drive, multi-speed motor for air volume variation. The ASPT may be installed in a variety of locations and configurations.
Features
- All-Aluminum Evaporator Coil
- Transformer and Blower Time-Delay
- Factory-mounted TXVs
- Compatible with the ComfortNet™ Communicating System family of products
- Maximum four low-voltage wires required for operation in communicating mode
- Auto configuration of the airflow and tonnage in communicating mode
- Factory-installed
- inverter-tuned thermal expansion valves
- Direct Drive ECM indoor blower motor
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- Provides adjustable low speed for efficient fan-only operation
- CFM and diagnostic indicator with front-panel sight glass
- Galvanized leather grain-embossed finish
- Foil-faced insulation covers the entire blower case to reduce operating sound and cabinet condensation
- Multi-position installation: upflow or downflow or horizontal
- AHRI certified; ETL listed

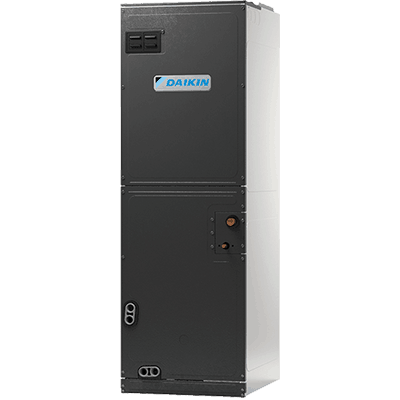

ARUF Air Handler
The Daikin brand ARUF Multi-Position Air Handler features a 21" deep cabinet for easy attic access. This unit includes a check flowrater expansion device as well as direct-drive, multi-speed motor for air volume variation. The ARUF is ideal for new or retrofit applications and may be installed in a variety of locations.
Features
- All-Aluminum Evaporator Coil
- Transformer and Blower Time-Delay
- All-aluminum evaporator coil
- Direct-drive - multi-speed PSC blower motor
- Coil mounting track for quick repositioning
- Rigid 21 inch deep cabinet for easy attic access
- Screw-less sides and back reduces condensation
- Foil-faced insulation covers the entire blower case to reduce operating sound and cabinet condensation
- Multi-position installation: upflow / downflow or horizontal
- Tool-less filter access accommodates standard-size filters
- AHRI certified; ETL listed

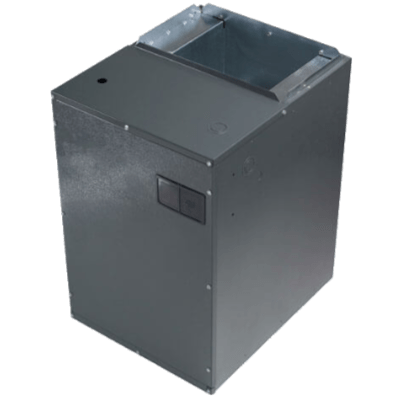

MBVC Modular Blower
The Daikin brand MBVC modular blower is tailor-made for exceptional energy efficiency. Now fully compatible with the ComfortNet™ line of communicating equipment, the MBVC's ECM indoor blower motor assemblies increase both installation and application flexibility. It can be matched with cased coils for upflow, downflow, and horizontal applications.
Features
- ComfortNet™ Compatible
- Built-in dehumidifying feature
- Usable as an Electric Furnace
- ComfortNet™ Communicating System compatible
- MBVC: variable-speed ECM indoor blower motor
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Built-in dehumidification feature
- Blower section usable as an electric furnace
- 21 inch deep cabinet for easier attic access
- Control board includes a blower time-delay in the cooling mode
- Foil-faced insulation lines the cabinet to help reduce operating sound and cabinet condensation
- Horizontal or vertical configuration

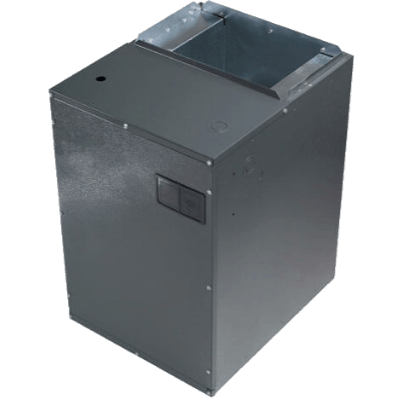

MBR Modular Blower
The Daikin brand MBR modular blower is tailor-made for exceptional energy efficiency. It can be matched with cased coils for upflow, downflow, and horizontal applications.
Features
- Usable as an Electric Furnace
- Multi-Position Installation
- MBR: multi-speed PSC blower motor
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Built-in dehumidification feature
- Blower section usable as an electric furnace
- 21 inch deep cabinet for easier attic access
- Control board includes a blower time-delay in the cooling mode
- Foil-faced insulation lines the cabinet to help reduce operating sound and cabinet condensation
- Horizontal or vertical configuration capabilities

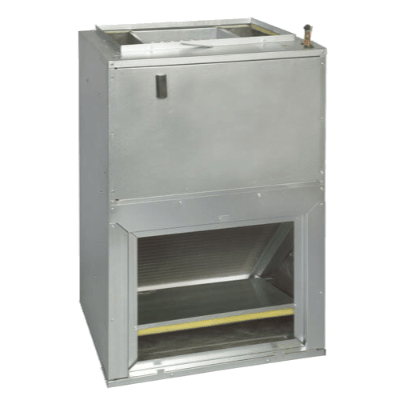

AWUF/AWUT Wall-Mount
The Daikin brand AWUF/AWUT Air Handler is designed to be vertically wall- or stud-mounted. This unit features a check flowrater and direct-drive, multi-speed motor. The AWUF/AWUT is housed in a fully insulated, galvanized-steel cabinet.
Features
- All-Aluminum Evaporator Coil
- Sequence-controlled
- Rust-resistant nickel chromium heating elements
- All-aluminum evaporator coil
- Direct-drive multi-speed motor allows air volume variation or heating/cooling
- Multi-speed ECM indoor: AWUF 19 - 25 - 31 - 32 - 37 & AWUT 31 - 32 & 37
- Multi-speed PSC motor: AWUF 18 - 19 - 30 - 36
- AWUF equipped with a check flowrater
- AWUT equipped with a fully adjustable TXV
- Aluminum tubing coils on all model
- Sequence-controlled rust-resistant nickel chromium heating elements
- Thermoplastic drain pan with bottom primary and secondary drain connection
- Factory-installed pull-type disconnect
- Built-in filter rack (filter included)
- Large chassis (2½- and 3-ton units) – front return only
- Small chassis (1½- and 2-ton units) – front or bottom return
- AHRI certified; ETL listed

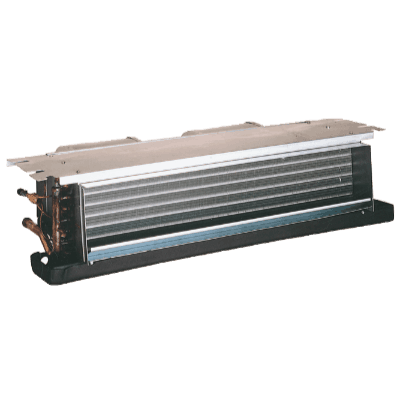

ACNF Air Handler
The Daikin brand ACNF Electric Heat Air Handler is designed to be ceiling-mounted. This unit features a check flowrater and direct-drive, resilient-mount, multi-speed motor. The ACNF has galvanized-steel construction and quiet operation.
Features
- All-Aluminum Evaporator Coil
- Quiet Operation
- Available with or without Heat
- Equipped with a check flowrater
- Direct-drive / resilient-mount / multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements
- High-efficiency evaporator coil
- Quiet operation
- Available with and without heat
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Factory-installed pull-type disconnect
- Easy service access
- AHRI certified; ETL listed

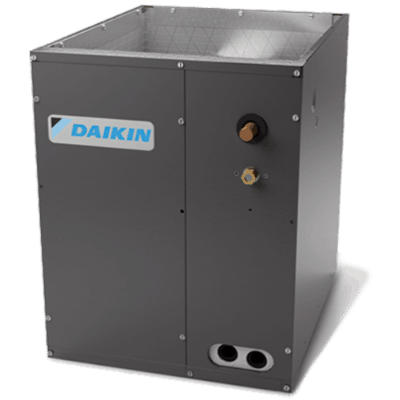

CAPT Cased Coils
The Daikin brand All-aluminum CAPT Cased coils with TXV option are made for split system air conditioners and heat pumps. This unit features aluminum tubing and corrugated aluminum fin coils and rust-resistant, high temperature, thermoplastic drain pans. The CAPT cabinet is painted nickel gray.
Features
- Rust-Resistant High-Temperature Thermoplastic Drain Pan
- Factory-Mounted TXV
- Internal factory-installed thermal expansion valves (TXV) for cooling and heat pump applications
- Rust-resistant high-temperature thermoplastic drain pans feature a low water-retention design
- All-aluminum evaporator coil
- Check flowrater for cooling and heat pump applications
- Rifled aluminum tubing and corrugated aluminum fin coil
- Galvanized
- leather grain-embossed finish
- 21 depth for easier attic access
- Upflow/downflow configuration
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- High-quality post-paint cabinet
- Split-seam front for easy access
- AHRI certified; ETL listed

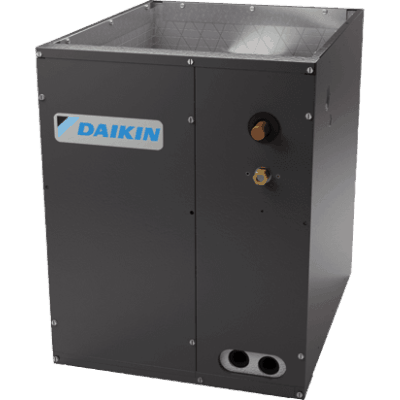

CAPF Cased Coils
The Daikin brand All-aluminum CAPF Cased Upflow/Downflow Indoor Coils are made for split system air conditioners and heat pumps. This unit features aluminum tubing and corrugated aluminum fin coils and rust-resistant, hightemperature, thermoplastic drain pans. The CAPF cabinet is painted nickel gray.
Features
- Rust-Resistant High-Temperature Thermoplastic Drain Pan
- Check flowrater for cooling and heat pump applications
- Rifled aluminum tubing and corrugated aluminum fin coil
- All-aluminum evaporator coil
- Galvanized
- leather grain-embossed finish
- Rust-resistant and high-temperature thermoplastic drain pans feature a low water-retention design
- Upflow/downflow configuration
- 21 depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Split-seam front for easy access
- DecaBDE-free UV-resistant drain pan
- UV-resistant drain pan
- AHRI certified and ETL listed
CAUF Uncased Coils
The Daikin brand All-aluminum CAUF Uncased Upflow/Downflow Indoor Coils are made for split system air conditioners and heat pumps. This coil features aluminum tubing and corrugated aluminum fins and rust-resistant, high-temperature, thermoplastic drain pan.
Features
- All-Aluminum Evaporator Coil
- Rust-Resistant
- High-Temperature Thermoplastic Drain Pan
- Check flowrater for cooling and heat pump applications
- All-aluminum evaporator coil
- Rifled aluminum tubing and corrugated aluminum fin coil
- 21 inch depth for easier attic access
- Upflow/downflow configuration
- Rust-resistant and high-temperature thermoplastic drain pans feature a low water-retention design
- UV-resistant drain pan
- AHRI certified; ETL listed

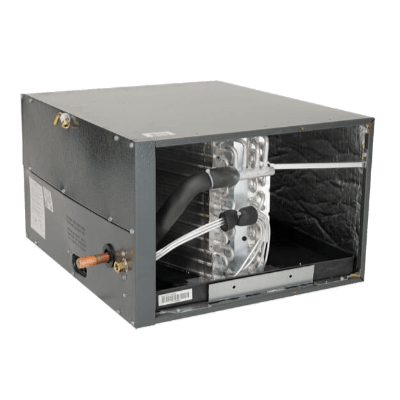

CHPF Cased Coils
The Daikin brand All-aluminum CHPF Cased Horizontal "A" Coils are made for split system air conditioners and heat pumps. Each coil is made of quality galvanized steel with a painted, leather grain-embossed finish. This cabinet is painted Architectural Gray.
Features
- Horizontal All-Aluminum Evaporator Coil
- Rust-Resistant
- High-Temperature Thermoplastic Drain Pan
- Check flowrater for cooling and heat pump applications
- Rifled aluminum tubing and corrugated aluminum fin coil
- All-aluminum evaporator coil
- Rust-resistant applications high-temperature thermoplastic drain pans feature a low water-retention design
- Galvanized and leather grain-embossed finish
- Horizontal configuration
- 21 depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- UV-resistant drain pan
- Split-seam front for easy access
- AHRI certified; ETL listed

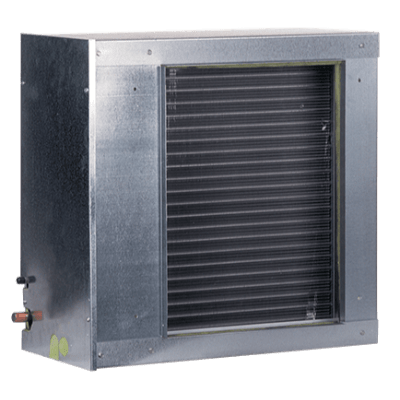

CSCF Coils
The Daikin brand CSCF Horizontal Slab Evaporator Coils are made for split system air conditioners and heat pumps. This unit features a check flowrater expansion device and rust-resistant, high-temperature, thermoplastic drain pan. Each coil’s cabinet has a quality, galvanized-steel finish.
Features
- Rust-Resistant
- High-Temperature Thermoplastic Drain Pan
- R-410A Refrigerant Compatible
- Check flowrater for cooling and heat pump applications
- All-aluminum evaporator coil
- Rifled aluminum tubing and corrugated aluminum fin coil
- Rust-resistant and high-temperature thermoplastic drain pan with secondary drain connection
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- UV-resistant drain pan
- AHRI certified and ETL listed
